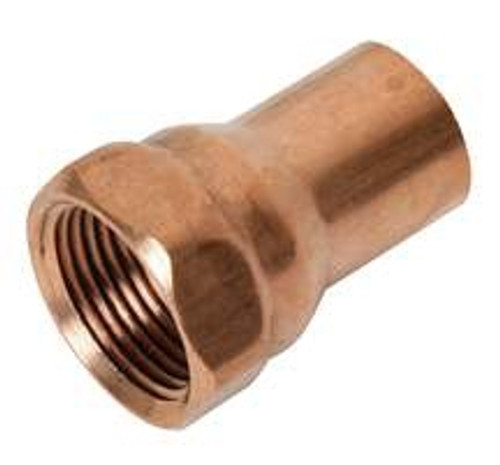

1/2 x 3/4" Copper Female Adapter - Copper x FIP - Mfg #603
- Female adapters adapt to standard male pipe threads
- Material and workmanship ASME/ANSI B16.22
- Dimensional, material, and workmanship of MSS SP-104 or MSS SP-109
- Certified to NSF/ANSI 61
| Make & Model | |
|---|
| UNSPSC |
40171700 |
| Manufacturer Part Number |
039923037329 |
| Material/Color/Finish | |
|---|
| Material |
Copper |
| Metal Pipe Fitting Material |
Wrought Copper |
| Specifications | |
|---|
| Made in the USA |
No |
| Country of Origin |
0 |
| ASME Specifications |
ASME/ANSI B16.22 |
| Packaging Dimensions | |
|---|
| Fitting Size |
1/2 x 3/4" |
| Size |
1/2 x 3/4" |
| Approximate Weight (Lbs) |
0.14 lb |
| Nominal Fitting Connection Size 1 |
1/2" |
| Nominal Fitting Connection Size 2 |
3/4" |
| Depth |
1.2 in |
| Height |
1.6 in |
| Weight |
0.25 lb |
| Width |
1.2 in |
| Product Features | |
|---|
| Package Quantity |
1 |
| Brand |
Nibco |
| TAABAA |
No |
| Type |
Female Adapter |
| Drop Eared |
No |
| Fire Suppression System Rated |
No |
| FOB |
No |
| Metal Fitting Connection Design 1 |
Female Solder Cup |
| UPC Code |
039923037329 |
| Metal Fitting Connection Design 2 |
Female NPT Thread |
| Supplier Product Name |
1/2 In. x 3/4 In. Copper Pressure Female Adapter, Cup x FIPT (Female NPT Thread) |
| Manufacturer Name |
NIBCO INC. |
| Manufacturer Model No |
603 |
| Certification & Standards | |
|---|
| GSA Approved |
No |
| UL Listed |
No |
| CSA B125 Compliant |
No |
| FM Approved |
No |
| NSF / ANSI Standard 14 Compliant |
No |
| NSF / ANSI Standard 61 Compliant |
Yes |
